| General | |||
|---|---|---|---|
| Product Name | Pluto | Manufacturer | EDISON LED LIGHTING |
| Installation Type | Recessed Ceiling Mounted | Control Gear | DALI dimmable driver |
| IP / IKN Rating | IP20 | Finish | White |
| Accessories | Honey Comb | Material | Die-cast Aluminium |
| Location | As per drawing | Adjustable / Fixed | Fixed |
| Beam Angle | 40° | ||
| LED | |||
| CCT | 3000K | CRI | 90 |
| Luminaire Output | 1140 lm | Lamp Life | 50,000 h |
| L/B (LED Ratings) | MacAdam Ellipse 2/3 Step | ||
| Electric | |||
| Lamp Wattage | 13W | ||
| Dimensions | |||
| Dimension | D54mm × 84mm | Pin Hole Dia | 18mm |
ED 309

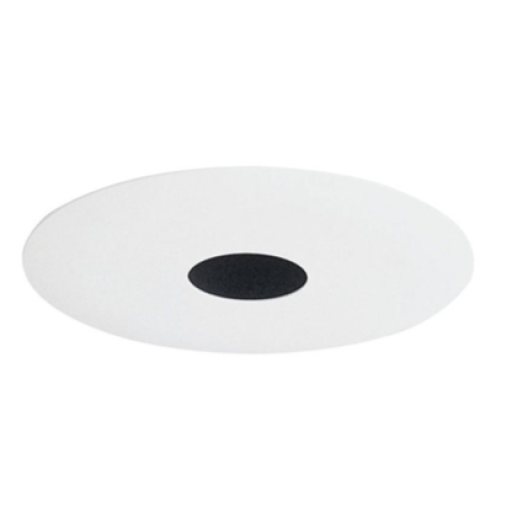

Edison LED Recessed Pin hole Spot light round made of die-cast aluminium white finish, DALI dimmable
driver, System Power 13W, Dimension D54mmxH84mm, 3000K with a System Luminous Flux of 1140lm, High
colour rendering at an index of CRI 90, Lifetime 50000h with 5years warranty.
