| General | |||
|---|---|---|---|
| Product Name | Pluto | Manufacturer | EDISON LED LIGHTING |
| Installation Type | Recessed Ceiling Mounted | Control Gear | DALI dimmable driver |
| IP / IKN Rating | IP20 | Finish | White |
| Accessories | Honey Comb | Material | Die-cast Aluminium |
| Location | As per drawing | Adjustable / Fixed | Fixed |
| Beam Angle | 40° | ||
| LED | |||
| CCT | 3000K | CRI | 90 |
| Luminaire Output | 1140 lm | Lamp Life | 50,000 h |
| L/B (LED Ratings) | MacAdam Ellipse 2/3 Step | ||
| Electric | |||
| Lamp Wattage | 13W | ||
| Dimensions | |||
| Dimension | D54mm × 84mm | Pin Hole Dia | 18mm |

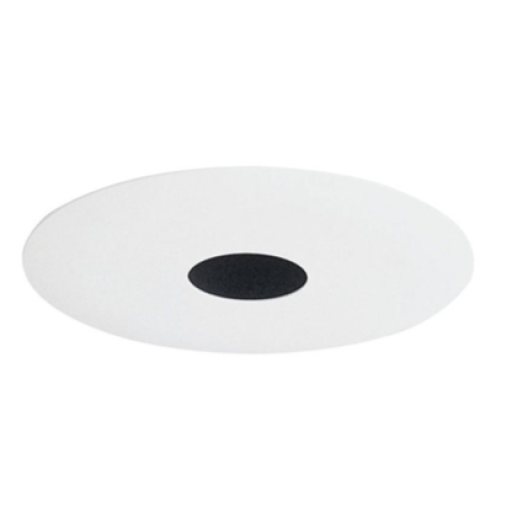

ED 309
Edison LED Recessed Pin hole Spot light round made of die-cast aluminium white finish, DALI dimmable
driver, System Power 13W, Dimension D54mmxH84mm, 3000K with a System Luminous Flux of 1140lm, High
colour rendering at an index of CRI 90, Lifetime 50000h with 5years warranty.
This product can be customized as per project requirements and specifications and is backed by a 5-year warranty.
