| General | |||
|---|---|---|---|
| Product Name | Lumanz-Twin | Manufacturer | EDISON LED LIGHTING |
| Installation Type | Recessed Ceiling Mounted | Control Gear | DALI Driver |
| IP / IKN Rating | IP65 | Finish | White |
| Accessories | Honey Comb | Material | Die-cast Aluminium |
| Location | As per drawing | Adjustable / Fixed | Adjustable |
| Beam Angle | 10D | ||
| LED | |||
| CCT | 3000K | CRI | 90 |
| Luminaire Output | 635 lm | Lamp Life | 50,000 h |
| L/B (LED Ratings) | MacAdam Ellipse 2/3 Step | ||
| Electric | |||
| Lamp Wattage | 9W | ||
| Dimensions | |||
| Dimension | D130mm × H97mm | ||

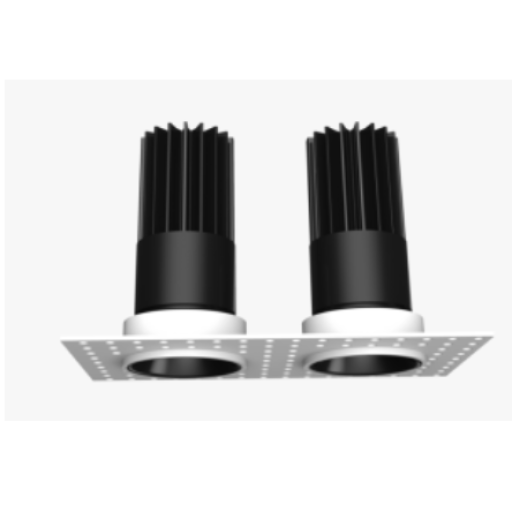

ED VC 18 -T2L – TWIN HEAD
Edison LED Recessed Trimless Spot light round made of die-cast aluminium white finish, DALI dimmable driver, System Power 9W, Dimension D41mmxH97mm , 3000K with a System Luminous Flux of 635lm, High colour rendering at an index of CRI90, Lifespan 50000h with 5years warranty.
