| General | |||
|---|---|---|---|
| Product Name | Lumanz-Twin | Manufacturer | EDISON LED LIGHTING |
| Installation Type | Recessed Ceiling Mounted | Control Gear | DALI Driver |
| IP / IKN Rating | IP20 | Finish | White |
| Accessories | Honey Comb | Material | Die-cast Aluminium |
| Location | As per drawing | Adjustable / Fixed | Adjustable |
| Beam Angle | 30D | ||
| LED | |||
| CCT | 3000K | CRI | 90 |
| Luminaire Output | 2 × 635 lm | Lamp Life | 50,000 h |
| L/B (LED Ratings) | MacAdam Ellipse 2/3 Step | ||
| Electric | |||
| Lamp Wattage | 2 × 9W | ||
| Dimensions | |||
| Dimension | D130mm × H97mm | ||
ED VC 18 -T2L – TWIN HEAD

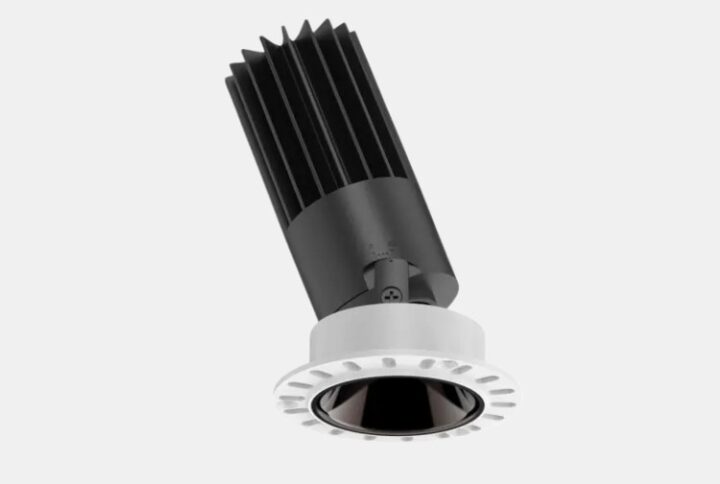

Edison LED Recessed Trimless Spot light round made of die-cast aluminium white finish, DALI dimmable driver,
System Power 2X9W, Dimension D41mmxH97mm , 3000K with a System Luminous Flux of 2X635lm, High colour
rendering at an index of CRI90, Lifespan 50000h with 5years warranty.
This product can be customized as per project requirements and specifications and is backed by a 5-year warranty.
